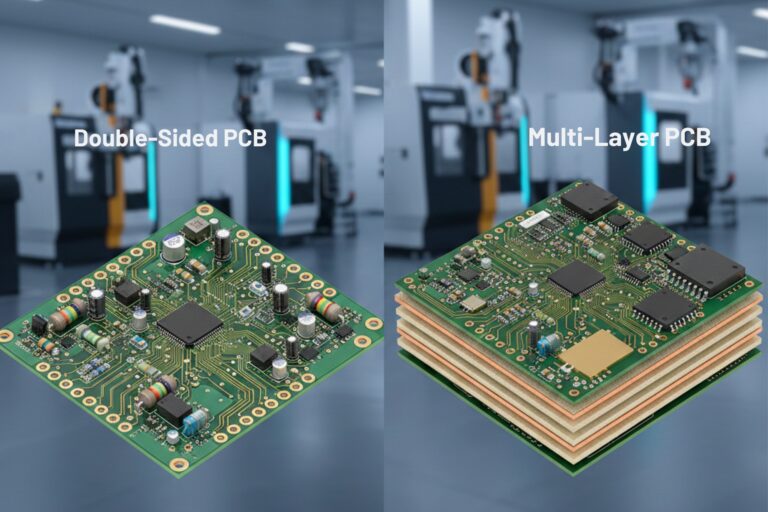

Double-sided PCBAs and multi-layer PCBAs are foundational options for modern electronics projects. Choosing between them impacts cost, performance, and complexity, making informed decisions critical for engineers and OEMs.
Double-sided PCBAs feature copper layers on both the top and bottom of the substrate, connected via plated through-holes (PTH). They suit moderately complex designs like consumer gadgets, industrial controls, and basic automotive modules.
Key features include:
Cost-effective for mid-volume production with lead times as short as 3-5 days.
Larger board sizes possible, ideal for power supplies or LED lighting.
Easier prototyping and rework compared to denser boards.
Multi-layer PCBAs stack 4 or more copper layers (up to 50+ in advanced designs) separated by insulating prepregs, enabling intricate routing for high-speed signals. They’re essential for smartphones, medical devices, servers, and telecommunications gear.
Key features include:
Superior signal integrity and EMI shielding for dense, high-frequency applications.
Compact footprints with blind/buried vias for space-constrained projects.
Enhanced thermal management via inner power/ground planes.
| Aspect | Double-Sided PCBAs | Multi-Layer PCBAs |
|---|---|---|
| Layers | 2 | 4+ |
| Complexity | Simple to moderate | High |
| Cost per Unit | Lower (₹50-200/sq.in) | Higher (₹150-500+/sq.in) |
| Min. Trace Width | 6-8 mil | 3-5 mil |
| Typical Lead Time | 3-7 days | 7-15 days |
| Applications | Power supplies, relays | HDI mobiles, RF modules |
Opt for double-sided PCBAs when budget and simplicity matter, such as in prototyping or low-density designs under 100g boards. Switch to multi-layer for projects needing >50 components/cm², high-speed signals (>1GHz), or miniaturization.
At Foshan Krivina PCBA, we manufacture both in China with ISO 9001 quality, importing reliably to India. Contact us for DFM reviews to optimize your stack-up and cut costs by 20-30%.
Ready to start? Get a free quote for your double-sided or multi-layer PCBA project today.
